IP65 Protection Class 0.2MPa 1.0MPa Pneumatic Regulator

Brand Name : POWERFLOW

Model Number : IPR 2010

Certification : ISO9001.

Place of Origin : CHINA

MOQ : 1 Nos

Price : Quotation Offered by Email.

Payment Terms : T/T

Supply Ability : 50Nos/Week for every single Customer.

Delivery Time : 10-15 Days

Max Supply Pressure : 0.2MPa/1.0MPa

Pressure Range : 0.005-0.1MPa; 0.005-0.5MPa; 0.005-0.9MPa

Supply Voltage : DC 24V±10%, Current below 0.12A

Input Signal : 4-20mA DC

Ambient Temp. : -20 - 50℃

Protection Class : IP65

Contact Now

IPR2000 Series DC 4-20mA Input Signal Intelligent Pneumatic Regulator with IP65 Protection Class



​1. Product Description

IPR2000 series is a compact design intelligent pneumatic regulator for gas medium.

It can receive 4-20mA signal from upstream and perform stepless control for pressure or flow rate.

It can be easily operated via keypad with very quick response.



2. Basic advantages

  • Stepless control of pressure
  • High precision, fast response
  • Compact design, easy operation
​

​3.Technical Datas

Type selection  IPR 2010,2020,2030
Min supply pressure  +0.1MPa
Max supply pressure  0.2MPa /1.0MPa
Pressure range

 0.005~0.1MPa

 0.005~0.5MPa

 0.005~0.9MPa
Supply voltage

 Voltage:DC:24V ±10%

 Current: Below 0.12A
 Input signal

 Current-mode:DC4~20mA

 Voltage-mode:DC0-5V, DC0~10V
 Input resistance

 Current-mode: below 250Ω

 Voltage-mode: about 6.5KΩ
 Output signal

 DC1~5V load resistance:above 1KΩ

 DC4~20mA load resistance: below 250Ω

 Output accuracy : within 6%
 Linear  1%F.S.
 Hysteresis  0.5%F.S.
 Repeatability  0.5%F.S.
 Temperature   characteristic  2%F.S.
 Pressure display

 2%F.S. (Accuracy)

 1/1000(Graduation)
 Ambient and Fluid   Temperature  0~50℃
 Protection level  IP65


4. Electrical and Pneumatic connections

IP65 Protection Class 0.2MPa 1.0MPa Pneumatic Regulator

IP65 Protection Class 0.2MPa 1.0MPa Pneumatic RegulatorIP65 Protection Class 0.2MPa 1.0MPa Pneumatic Regulator

No. Description
1 V+ (Brown)
2 In (White)
3 V- (Blue)
4 Out (Black)
5 Down Button
6 Set Button
7 Up Button
8 Pneumatic Inlet
9 Pneumatic Outlet
10 Pneumatic Exhaust



5. Dimensions

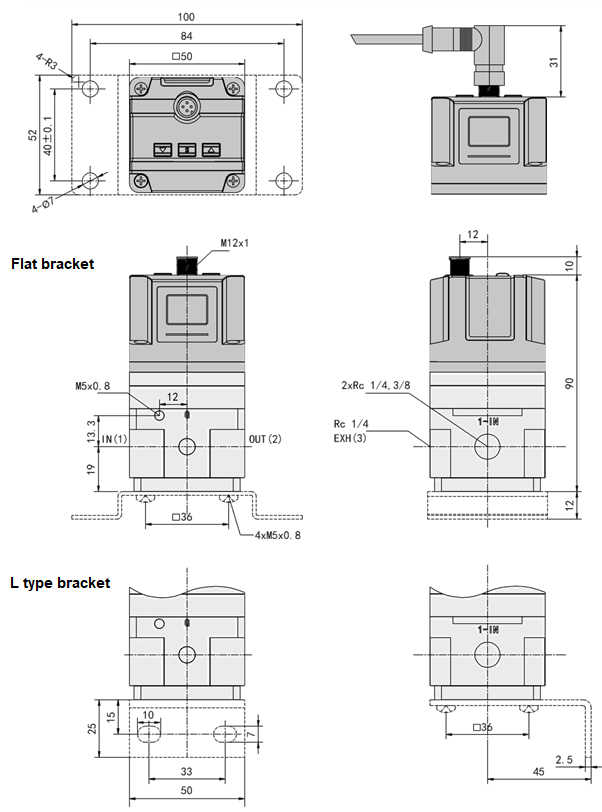

  • IPR 2010

​IP65 Protection Class 0.2MPa 1.0MPa Pneumatic Regulator

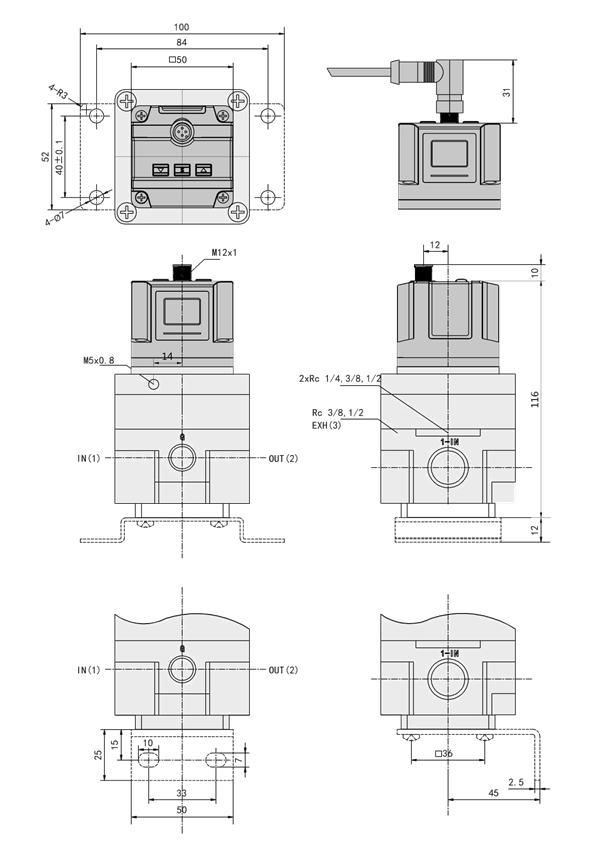

  • IPR 2020

​IP65 Protection Class 0.2MPa 1.0MPa Pneumatic Regulator

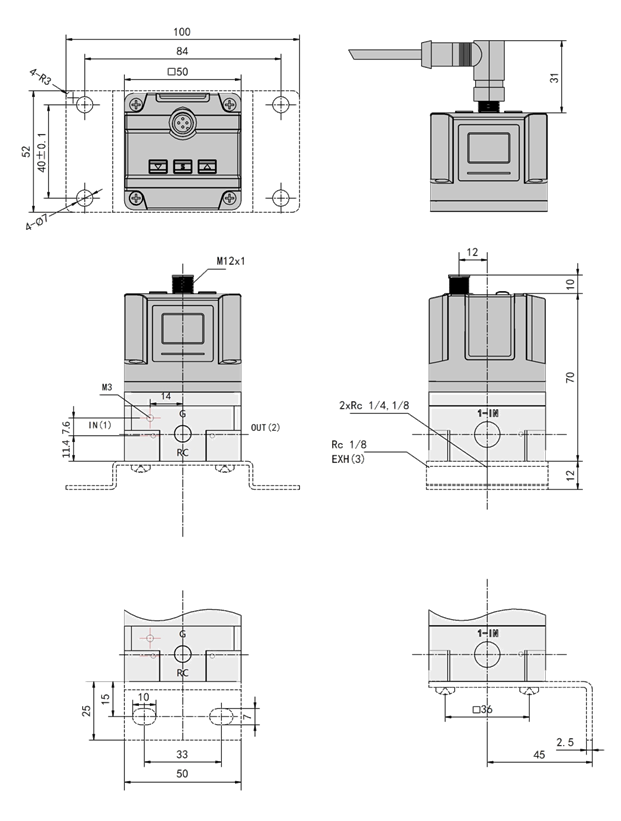

  • IPR 2030

​IP65 Protection Class 0.2MPa 1.0MPa Pneumatic Regulator



6. Type Selection

IP65 Protection Class 0.2MPa 1.0MPa Pneumatic Regulator

Note: POWERFLOW reserves the right to change specifications without notification.
