4-20mA Output Signal 0.1MPa Electropneumatic Regulator

Product Categories

POWERFLOW CONTROL CO,. LTD.

Contact Now

Name: 420mA Output Signal 01MPa Electropneumatic Regulator
Brand: POWERFLOW
Price: 1 USD

Brand Name : POWERFLOW

Model Number : IPR 2010

Certification : ISO9001.

Place of Origin : CHINA

MOQ : 1 Nos

Price : Quotation Offered by Email.

Payment Terms : T/T

Supply Ability : 50Nos/Week for every single Customer.

Delivery Time : 10-15 Days

Type Selection : IPR 2010, 2020, 2030

Min Supply Pressure : ±0.1MPa

Max Supply Pressure : 0.2MPa/1.0MPa

Pressure Range : 0.005-0.1MPa; 0.005-0.5MPa; 0.005-0.9MPa

Input Resistance : Current-mode: below 250Ω; Voltage-mode: about 6.5KΩ

Output Signal : DC 1-5V load resistance: above 1KΩ； DC 4-20mA load resistance: below 250Ω； Output accuracy: within 6%

Contact Now

IPR2000 Series 0.1MPa Pressure Range Intelligent Pneumatic Regulator with 4-20mA Output Signal

1. Product Description

IPR2000 series is a compact design intelligent pneumatic regulator for gas medium.

It can receive 4-20mA signal from upstream and perform stepless control for pressure or flow rate.

It can be easily operated via keypad with very quick response.

2. Features

3.Technical Datas

Type selection	IPR 2010,2020,2030
Min supply pressure	+0.1MPa
Max supply pressure	0.2MPa /1.0MPa
Pressure range	0.005~0.1MPa 0.005~0.5MPa 0.005~0.9MPa
Supply voltage	Voltage:DC:24V ±10% Current: Below 0.12A
Input signal	Current-mode:DC4~20mA Voltage-mode:DC0-5V, DC0~10V
Input resistance	Current-mode: below 250Ω Voltage-mode: about 6.5KΩ
Output signal	DC1~5V load resistance:above 1KΩ DC4~20mA load resistance: below 250Ω Output accuracy : within 6%
Linear	1%F.S.
Hysteresis	0.5%F.S.
Repeatability	0.5%F.S.
Temperature characteristic	2%F.S.
Pressure display	2%F.S. (Accuracy) 1/1000(Graduation)
Ambient and Fluid Temperature	0~50℃
Protection level	IP65

4. Output pressure/ Signal input

4-20mA Output Signal 0.1MPa Electropneumatic Regulator

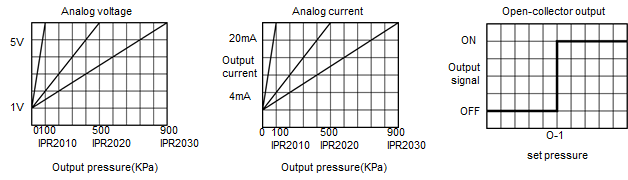

5. Output pressure/ Signal output

4-20mA Output Signal 0.1MPa Electropneumatic Regulator

6. Type Selection

4-20mA Output Signal 0.1MPa Electropneumatic Regulator

Note: POWERFLOW reserves the right to change specifications without notification.
