SMS Stainless Steel SS304 CF8 Angle Seat Y Type Control Valve

Brand Name : POWERFLOW

Model Number : 2710+1600

Certification : ISO9001. CE.

Place of Origin : CHINA

MOQ : 1 Nos

Price : Quotation Offered by Email.

Payment Terms : T/T

Supply Ability : 50Nos/Week for every single Customer.

Delivery Time : 10-15 Days

Valve Body Material : Stainless steel 304(CF8)/ 316(CF8M)

Actuator Material : Plastic/Stainless steel 304(CF8)/ 316(CF8M)

Seal Material : PTFE/PPL

Working Pressure : 16Bar

Standard : DIN, SMS, ISO, IDF,RJT, 3A, etc

Certificate : CE

Contact Now

2710 Series Stainless Steel SS304(CF8) Angle Seat Control Valve with SMS Standard



1. Product description

The angle seat control valve is combined with the intelligent positioner (1600) and the angle seat valve(2710). Compared to 2700 series angle seat valve, 2710 is with adjusting cones, so its flow characteristic is more suitable for the flow adjustment.

1600 Series positioner can be operated via the keypad easily. It detects the signal of internal displacement sensor and the external setting signal, and adjusts valve stroke fast and precisely via PWM control technology and automatic control algorithm.

SMS Stainless Steel SS304 CF8 Angle Seat Y Type Control Valve



2. 2710 Angle Seat Valve Technical Datas

 Valve Body Material  Stainless steel 304(CF8)/ 316(CF8M)
 Actuator Material  Plastic/ Stainless steel 304(CF8)/ 316(CF8M)
 Seal Material  PTFE/ PPL
 Working Pressure  16Bar
 Available Size  DN15 - DN100
 Working Temperature  -20 - 220℃
 Available Connection  Thread, Clamp, Flanged, Weldind
 Air Supply  2.5 - 8Bar
 Standard  DIN, SMS, ISO, IDF, RJT, 3A, etc
 Certificate  CE

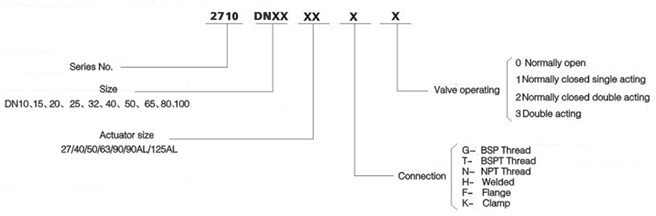

3. 2710 Type Selection

SMS Stainless Steel SS304 CF8 Angle Seat Y Type Control Valve

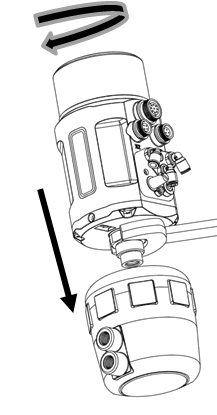

4. Assembling

The positioner and Valve is connected by thread. You can easily assemble them with a #32 wrench.

After assembling, the 1600 Positioner can still have 360°Rotation to fix to your best position

SMS Stainless Steel SS304 CF8 Angle Seat Y Type Control Valve

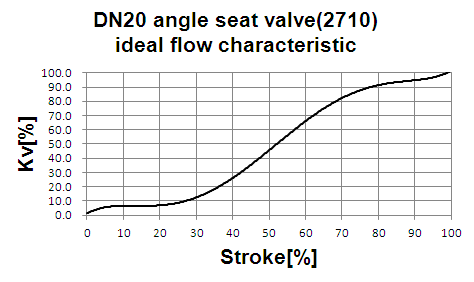

5. Flow characteristics

Stroke(%) Kv(%) Stroke(%) Kv(%)
0 0 55 56.3
5 5.1 60 64.8
10 6.3 65 74.9
15 6.6 70 82.7
20 7.2 75 84.3
25 7.9 80 89.1
30 10.9 85 93
35 17.8 90 97.3
40 26.7 95 97.9
45 35.2 100 100
50 45.1

SMS Stainless Steel SS304 CF8 Angle Seat Y Type Control Valve



6. Signal flow diagram

SMS Stainless Steel SS304 CF8 Angle Seat Y Type Control Valve
